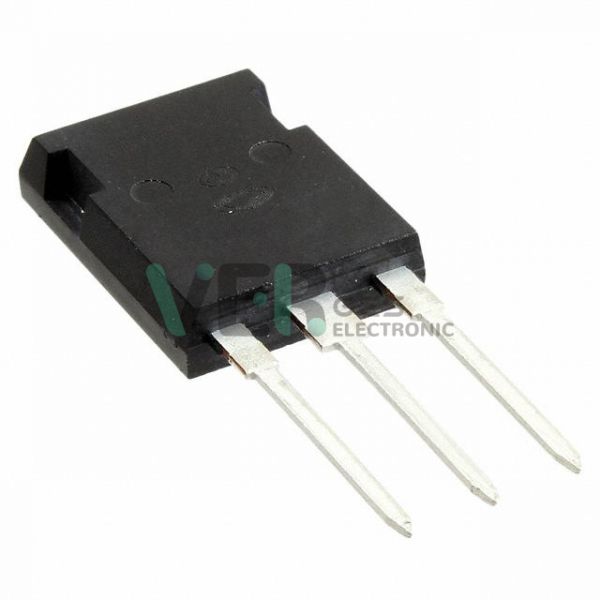

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | APT50GT120B2RG |
| Manufacturer: | Microchip Technology |
| Part of Description: | IGBT 1200V 94A 625W TO247 |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 6435 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
Stock Status: 6435
Minimum: 1
Call for price or sumbit a RFQ
US $40 by FedEx.
Arrive in 3-5 days
Express:(FEDEX, UPS, DHL, TNT)Free shipping on first 0.5kg for orders over 150$,Overweight will be charged separately
| Type | Description |
|---|---|
| Product Status | Active |
| IGBT Type | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 94 A |
| Current - Collector Pulsed (Icm) | 150 A |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 50A |
| Power - Max | 625 W |
| Switching Energy | 2330µJ (off) |
| Input Type | Standard |
| Gate Charge | 340 nC |
| Td (on/off) @ 25°C | 24ns/230ns |
| Test Condition | 800V, 50A, 4.7Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | - |
