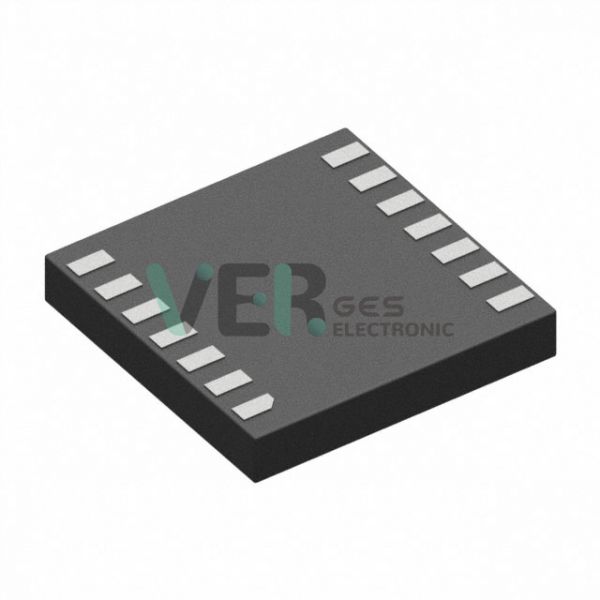

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | SI8234BB-D-IM1R |
| Manufacturer: | Skyworks Solutions Inc. |
| Part of Description: | ISOLATED GATE DRIVER |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 33776 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
Stock Status: 33776
Minimum: 1
Call for price or sumbit a RFQ
US $40 by FedEx.
Arrive in 3-5 days
Express:(FEDEX, UPS, DHL, TNT)Free shipping on first 0.5kg for orders over 150$,Overweight will be charged separately
| Type | Description |
|---|---|
| Product Status | Active |
| Technology | Capacitive Coupling |
| Number of Channels | 2 |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 45kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 60ns, 60ns |
| Pulse Width Distortion (Max) | 5.6ns |
| Rise / Fall Time (Typ) | 12ns, 12ns |
| Current - Output High, Low | 2A, 4A |
| Current - Peak Output | 4A |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 6.5V ~ 24V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-VDFN |
| Supplier Device Package | 14-QFN (5x5) |
| Approval Agency | CQC, CSA, UR, VDE |
