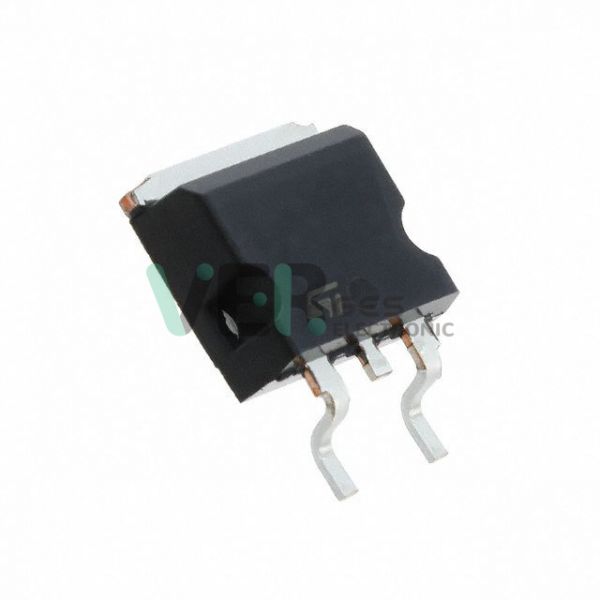

STGB20N40LZSTMicroelectronics

Manufacturer Part Number: STGB20N40LZ
Manufacturer: STMicroelectronics
Part of Description: IGBT 390V 25A 150W D2PAK
Lead Free Status / RoHS Status: Lead Free / RoHS Compliant
Stock Condition: 34101 In Stock
Ship From: Hong Kong
Shipment Way: DHL/Fedex/TNT/UPS/EMS
REMARK
Buy the STGB20N40LZ STMicroelectronics on VRSChip.com, we are STMicroelectronics Corporation distributor,we sales new&original and offer 24 hours service,180 days warranty date, send the STGB20N40LZ within 24 hours,please contact our sales team or send email to [email protected] Hope we can cooperate in the future.
BUYING OPTIONS

Stock Status: 34101

Minimum: 1

Call for price or sumbit a RFQ

Freight calculation

US $40 by FedEx.

Arrive in 3-5 days

Express:(FEDEX, UPS, DHL, TNT)Free shipping on first 0.5kg for orders over 150$,Overweight will be charged separately

Products Specification
TypeDescription
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)390 V
Current - Collector (Ic) (Max)25 A
Current - Collector Pulsed (Icm)40 A
Vce(on) (Max) @ Vge, Ic1.6V @ 4V, 6A
Power - Max150 W
Switching Energy-
Input TypeLogic
Gate Charge24 nC
Td (on/off) @ 25°C700ns/4.3µs
Test Condition300V, 10A, 1kOhm, 5V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device PackageD²PAK (TO-263)
