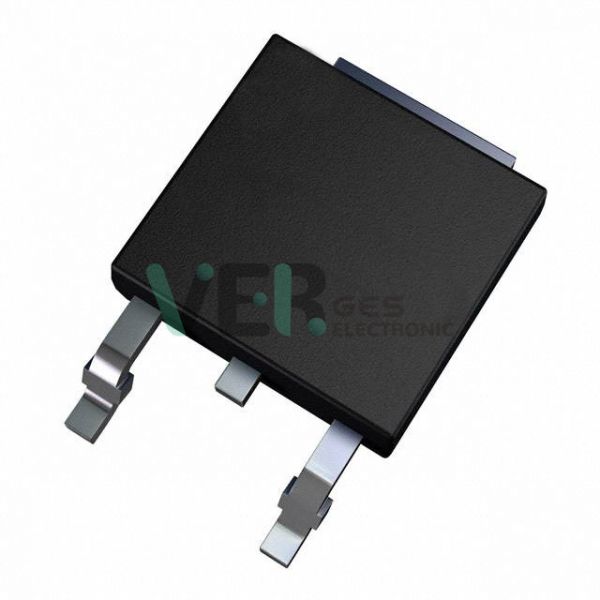

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | STD70N02L |
| Manufacturer: | STMicroelectronics |
| Part of Description: | MOSFET N-CH 25V 60A DPAK |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 82149 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
Stock Status: 82149
Minimum: 1
Call for price or sumbit a RFQ
US $40 by FedEx.
Arrive in 3-5 days
Express:(FEDEX, UPS, DHL, TNT)Free shipping on first 0.5kg for orders over 150$,Overweight will be charged separately
| Type | Description |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 1.8V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 32 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1400 pF @ 16 V |
| FET Feature | - |
| Power Dissipation (Max) | 60W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DPAK |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
