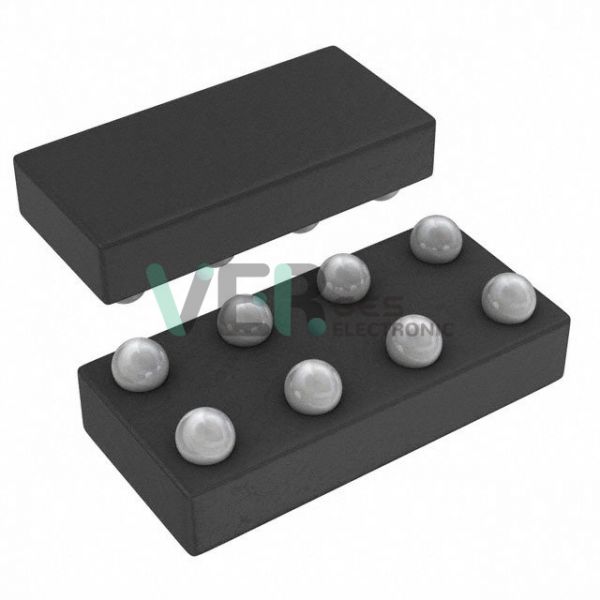

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | TPS22920LYZPR |
| Manufacturer: | Texas Instruments |
| Part of Description: | IC PWR SWITCH N-CHAN 1:1 8DSBGA |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 65793 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
Stock Status: 65793
Minimum: 1
Call for price or sumbit a RFQ
US $40 by FedEx.
Arrive in 3-5 days
Express:(FEDEX, UPS, DHL, TNT)Free shipping on first 0.5kg for orders over 150$,Overweight will be charged separately
| Type | Description |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 0.75V ~ 3.6V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 4A |
| Rds On (Typ) | 5.3mOhm |
| Input Type | Non-Inverting |
| Features | Load Discharge, Slew Rate Controlled |
| Fault Protection | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DSBGA (1.9x0.9) |
| Package / Case | 8-XFBGA, DSBGA |
