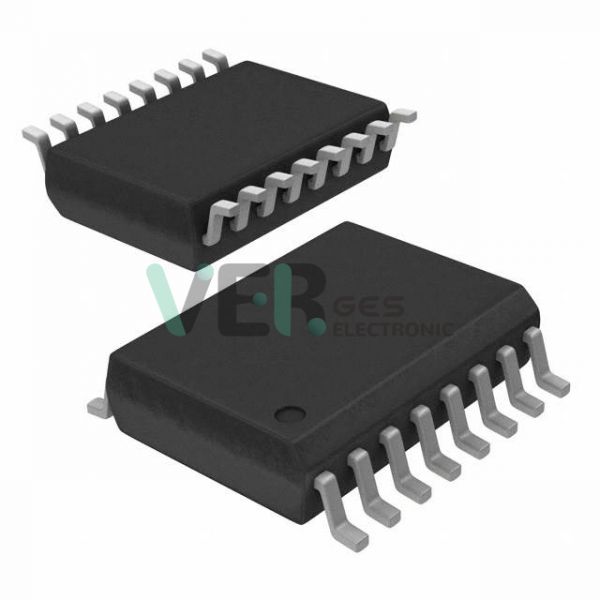

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | UCC2806DWTRG4 |
| Manufacturer: | Texas Instruments |
| Part of Description: | IC REG CTRLR MULT TOP 16SOIC |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 96782 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
Stock Status: 96782
Minimum: 1
Call for price or sumbit a RFQ
US $40 by FedEx.
Arrive in 3-5 days
Express:(FEDEX, UPS, DHL, TNT)Free shipping on first 0.5kg for orders over 150$,Overweight will be charged separately
| Type | Description |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Boost, Flyback, Forward Converter |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 14.5V |
| Frequency - Switching | 47kHz |
| Duty Cycle (Max) | 50% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
168 out of 176 (98%)
Customers recommended this product
The parcel was well packed when received, thank you seller for fast response and good quality.
They are very patience to slove my problem.
The seller was very nice and friendly. The product was on time and in good quality.
Thank you for your prompt and courteous service from ordering to shipping.
