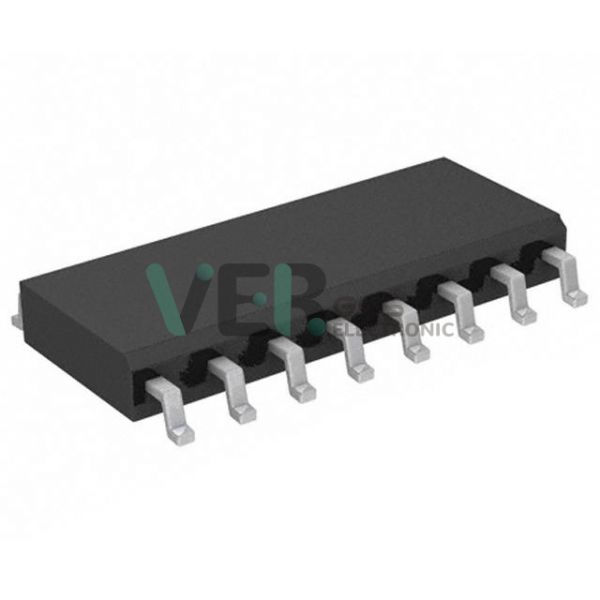

Image is for reference, please contact us to get the real picture
| Manufacturer Part Number: | TPS2047DRG4 |
| Manufacturer: | Texas Instruments |
| Part of Description: | IC PWR SWTCH N-CH 1:2/1:1 16SOIC |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Stock Condition: | 79921 In Stock |
| Ship From: | Hong Kong |
| Shipment Way: | DHL/Fedex/TNT/UPS/EMS |
Stock Status: 79921
Minimum: 1
Call for price or sumbit a RFQ
US $40 by FedEx.
Arrive in 3-5 days
Express:(FEDEX, UPS, DHL, TNT)Free shipping on first 0.5kg for orders over 150$,Overweight will be charged separately
| Type | Description |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 3 |
| Ratio - Input:Output | 1:2, 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 250mA |
| Rds On (Typ) | 80mOhm |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SOIC |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
